Lindsay 120V PC Board Assembly [PC120ST]

Product received may look different from the one shown.
Have a question about this product?
Contact Us!

List Price: $90.00

Direct Price: $80.95

Save $9.05!

Special Notes About This Item: There are no returns on this item.
If you are not comfortable with repairing electrical components we recommended contacting a licensed electrician to help with the install.

Installation Note: Some modifications to your central vacuum power unit may be required for the installation of this part.

Availability: Usually Ships in 24 Hours
Product Code: PC120ST

Qty:

Description

Other Information

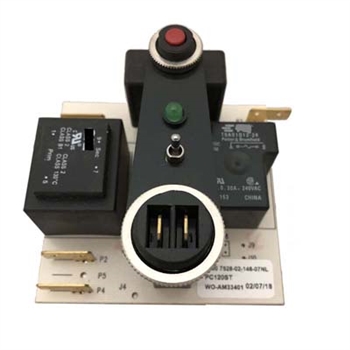

Replacement Lindsay Manufacturing PC board assembly.

Replacing a PC board is relatively easy and does not require a lot of technical knowledge. This repair can be often be completed in less than an hour.

Will fit the following models:

Imperium
- CV7500
VacuMaid
- P110
- P125
- P125P
- P225
- S2000
- S2600

Replacement Instructions

Disconnect Power from the Unit
Remove the Screws from the Lid
Remove the Lid
Disconnect 2 Low Volt Wires from the Side of the Unit
Remove Both Nuts from the Control Board
Remove Both Black wires from the Control Board
1. Black Wire from Motor P3
2. Black Wire from P1
Remove both White Wires from Control Board
1. White Wire from P2
2. White Wire from P4
Connect Black and White Wires to New Control Board (Refer to Steps 6 & 7 for Wire Placement)
Replace Both Control Board Nuts
Connect Both Low Volt Wires to Board Terminals
Connect Power to the Unit
Test Unit

Average Customer Review: Average Customer Review: 4.5 of 5

4.5 of 5 Total Reviews: 3 Write a review.

0 of 0 people found the following review helpful:

I needed a board, they had the exact replacement!	October 24, 2025
Reviewer: Kelly Patrick from Clearwater, FL United States

I needed a board for a 30yr old imperium central vac and Central vacuum direct had the exact part I needed to fix my vacuum, fast shipping and everything works.

Was this review helpful to you?

0 of 0 people found the following review helpful:

Good Part But Difficult Installation	March 13, 2023
Reviewer: Scott from Houston, TX United States

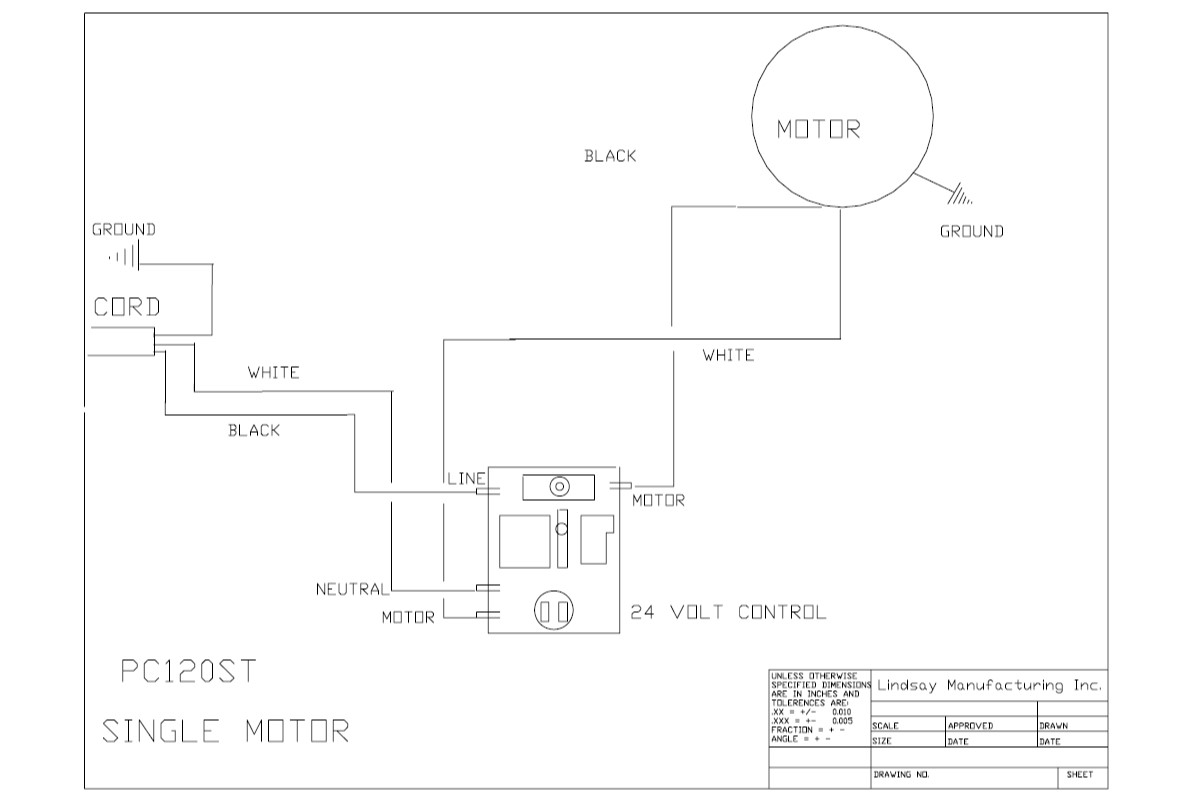

I purchased this part to replace the failed PC board in my older Vacu-Maid P-110 central vac. I am a homeowner not a professional repair tech. The part itself is well made and functions as designed fixing the problem with my vac cutting on and off erratically. That said, it should be noted this new board changed the wiring configuration from the original board. The 4 connector pins are in the exact same locations, however, the wire connections are different. The neutral wire and incoming hot wire are moved to different connectors from the original. It took me several tries to get the connections correct and the vacuum working. I originally connected the wires exactly as they had been on the original board but this resulted in a thrown breaker when the unit was plugged in. It would have been helpful to have had a simple schematic or wiring diagram included with the part showing exactly where the 4 wires (2 motor, incoming hot, incoming neutral) are connected to the board.

Was this review helpful to you?

0 of 0 people found the following review helpful:

	August 14, 2022
Reviewer: John Patterson from Whitwell, TN United States

great product, easy to order

Was this review helpful to you?
