NuTone Replacement Relay PC Board [0521B-000]

Home > Shop By Brand > NuTone > NuTone PC Boards / Switches / Misc. Parts >

NuTone Replacement Relay PC Board [235S]

Product received may look different from the one shown.
Have a question about this product?
Contact Us!

Alternative Views:

List Price: $99.95

Direct Price: $79.95

Save $20.00!

Special Notes About This Item: There are no returns on this item.
If you are not comfortable with repairing electrical components we recommended contacting a licensed electrician to help with the install.

Installation Note: Some modifications to your central vacuum power unit may be required for the installation of this part.

Alternate SKU(s): 0521B-000, 87119000

Availability: Usually Ships in 24 Hours
Product Code: 235S

Qty:

Description

Other Information

Technical Specs

Replacement NuTone relay PC board.

Will fit the following models:

NuTone
- 350
- 353
- CV350
- CV352
- CV353
- CV400
- CV400C
- CV550
- CV553
- CV653

Please Note:

The blue power lead wire has been changed to a black lead wire and the red lead wire connected to the switch has been changed to a yellow lead wire.
For models manufactured after May 1997, two additional lead wires are provided. If your unit was made prior to that these wires are not used and should be removed from the terminal connection.

Additional Information

This PC board is a great replacement for 110V, single-motor model central vacuums with a single control board or separate relay. Retrofitting may be required for the install.

This model contains a relay, transformer, a 15A mini breaker and two pairs of low voltage leads.

The PC board is 2" high from the base of the board to the top of the reset button. The reset button and the low voltage stems are both threaded. When the two stems are put through the holes in the body of the unit, they hold the board in place with two included mounting nuts. If the unit does not already have a proper mounting hole for the installation you can use a drill and step bit to create one.

Please Note: As this is an electrical part, please take proper precautions before installation. The entire process should take less than an hour.

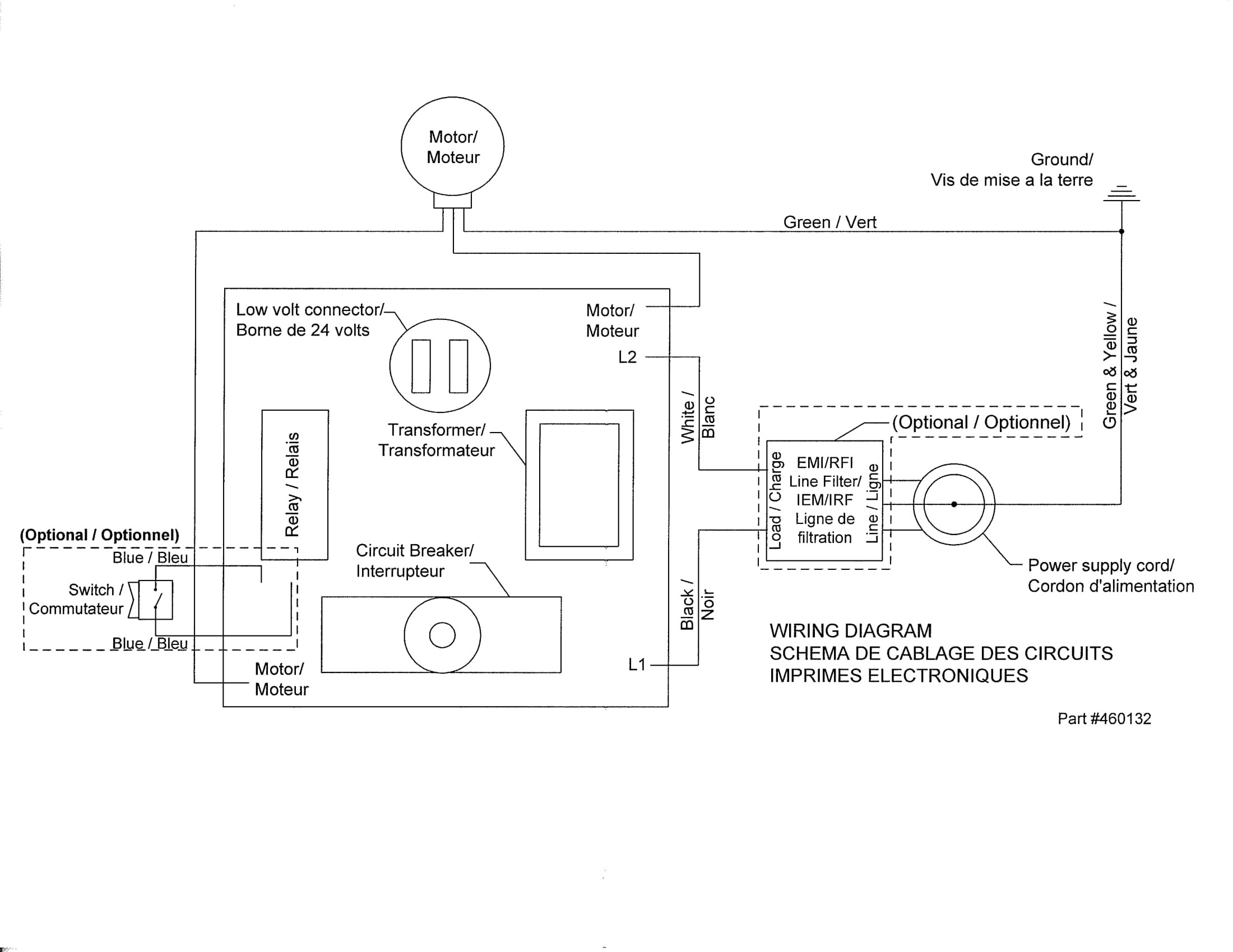

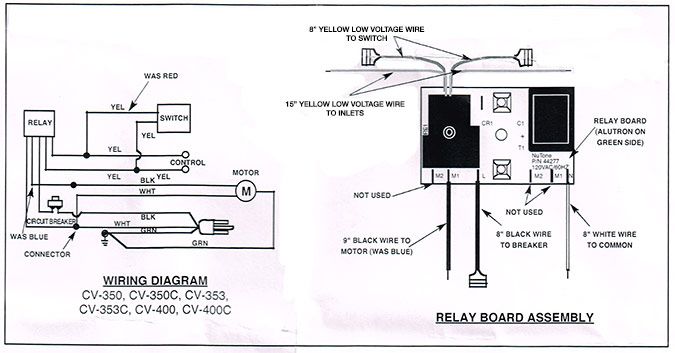

Wiring locations on the board:
1. LINE: The 110V line from the power cord
2. NTL: The neutral wire from the power cord
3. MOTOR: Connect either wire from the motor to this contact
4. MOTOR: Connect the other wire from the motor to this contact
5. Black Tower: Low voltage wires from the home will attach to the two 1/4" male flag connectors inside the black tower part of the board.
6. Yellow Wires: Connect to an on/off low voltage switch on the side of the tank or are unused
